The TF Scout T brings powerful technologies and advanced autonomy to users. TF Scout T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GNSS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the TF Scout T is as portable as it is capable.

  • 720°

    No Blind Spots

  • Superior

    Anti-Interference Capability

  • High-Precision

    Visual Navigation

  • Mesh

    Networking

  • 8 K

    10x Optical Zoom Camera

  • AI

    Target Recognition

  • Hot Swappable

    Battery

  • 42 Min

    Max. Flight Time

  • 15 KM

    Transmission Range

  • IP43

    Weather Rating (Custom service)

  • Autonomous Path Finding

    TF's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

  • Navigation In GNSS Denied Environments

    Advanced sensors allow the TF Scout T to navigate within hardened structures, underground, or in environments without GNSS.

  • Accurate Object Identification and Tracking

    Based on TF's AI recognition technology, the TF Scout T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

1 3

No Blind Spots
Ultimate Obstacle Avoidance

TF Scout T is the commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the onboard TF Autonomy Engine to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.

1 2

Superior Anti-interference

The TF Scout T uses advanced flight control modules and algorithms that can identify flight control interference signals and satellite positioning interference signals. This enables the TF Scout T to fly confidently near power lines, critical structures, and in complex areas.

TF Link

The TF Link System comes with 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in a TF Scout.

  • 15Km
    Image Transmission Distance
  • ＜150ms
    Latency
  • 1080P
    Real-Time Image Quality
  • 900M / 2.4G / 5.2G / 5.8G*
    Frequency Bands
* Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.

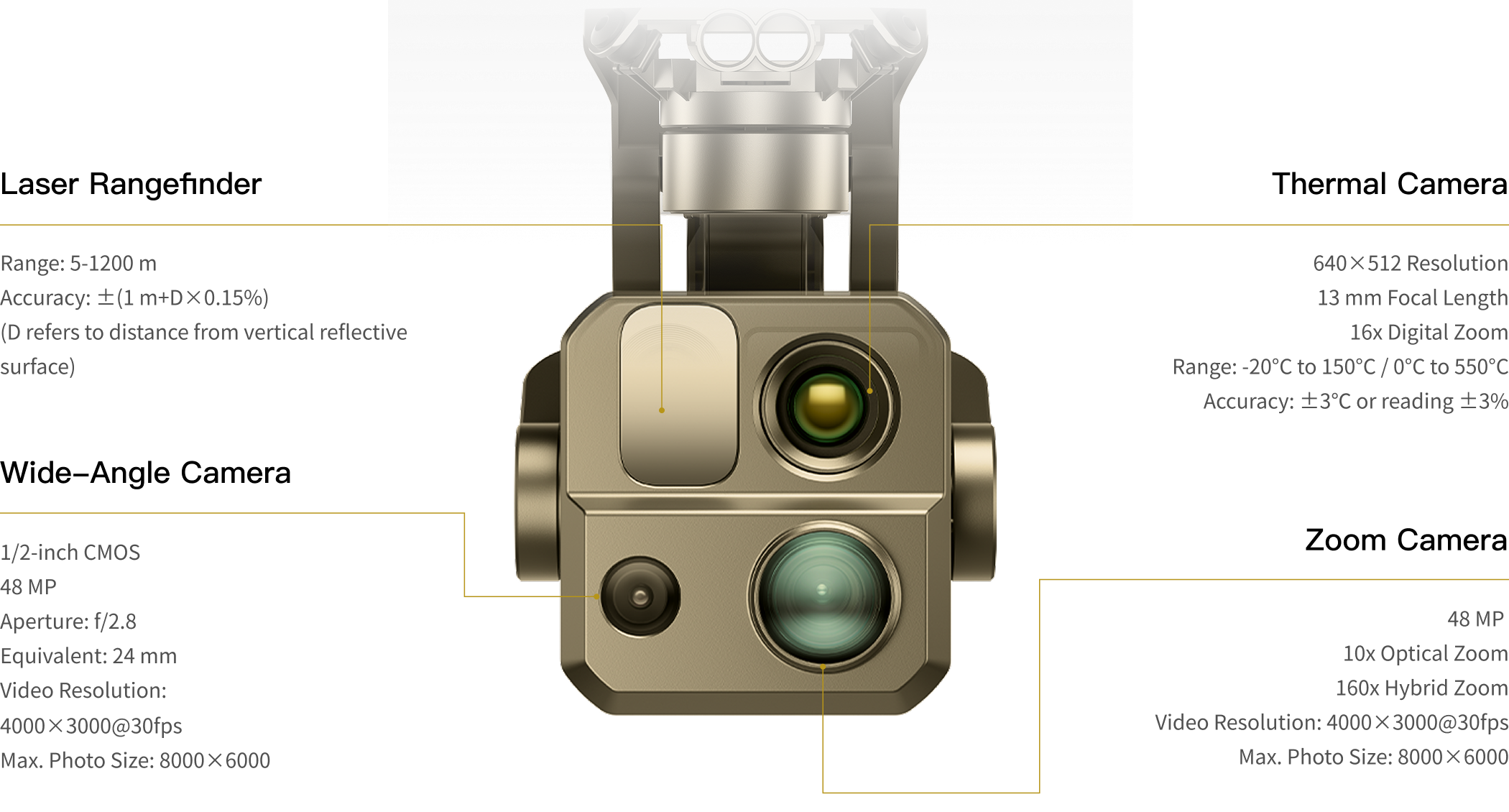

Mission Ready Payload

Zoom Camera
  • 48 MP
  • 10x Optical Zoom
  • 160x Max. Hybrid Zoom
  • Video Resolution: 4000x3000 30P
  • Aperture: f/2.8-f/4.8
Wide-Angle Camera
  • 50 MP
  • 1/1.28" CMOS
  • Aperture: f/1.9
  • DFOV: 85°
  • Equivalent: 23 mm
Thermal Camera
  • 640x512
  • Focal Length: 13 mm
  • 16x Digital Zoom
  • Range: -4 °F to 1022 °F
Laser Rangefinder
  • Measuring Range: 5-1200m (16.4-3737 ft)
  • Measurement Accuracy: ±(1m+Dx0.15%)

*where D is the distance to a vertical reflecting plane

Chase the Heat

Super Zoom

The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up to 160x, making vehicles and ships visible up to 2 kilometers away. Operators do not need to go to the scene, thereby improving work efficiency and ensuring the safety of personnel and flight equipment. This efficient capability empowers applications in energy inspections, emergency rescue, and public safety and security industries.

Super-sensitive Imaging

Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up to 64000. Even in moonlight conditions, it can capture target details.

Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion technology, ensuring delicate and clear photos in low-light environments.

Superior Infrared

Thermal imaging resolution up to 640x512, using 13mm / 9.1mm focal length lenses*, supporting 16x digital zoom for clearer and farther imagery.*The thermal imaging camera for TF Scout T has a 13mm focal length, and for TF Scout N, it has a 9.1mm focal length.

Precision Ranging

One-click pinpoint positioning enables rapid acquisition of target location, with a maximum ranging distance of up to 1.2 kilometers.

Smart Features

  • Quick Mission

    Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

  • Mission Reproduction*

    With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The TF Scout T will automatically record the camera angles and replicate the mission you just flew.

    *This accessory will be launched later.

Multiple Mission Types

The App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Waypoint Missions

Users can add waypoints for flexible, non-structured flight paths.

Automatic Mission Generation And Data Capture*

Automatically produce routes by adding regional boundary points through dots or importing KML files.

*This feature is pending future updates.

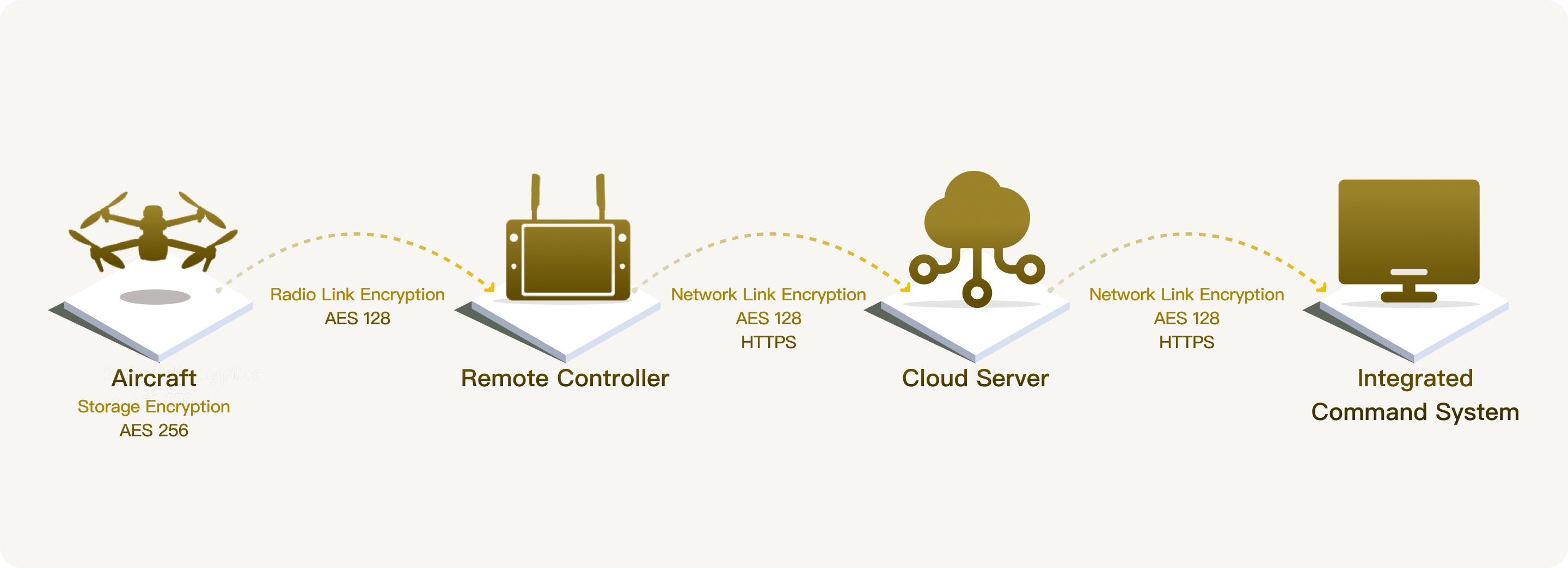

Data Security

Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally. Supports AES encryption for photos, videos, and flight logs, are password-protected.

Enhanced Live-View

Multi-channel Projection Screen

Supports simultaneous output of RGB, infrared, and wide-angle images.

Operating Environment

  • IP43 Weather Rating*
  • -20℃ to 50℃ Operating temperature**
  • * Custom service ** Without load

SDK Ecosystem

The SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

Mobile SDK/ Payload SDK

Mobile SDK: Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

Payload SDK: Unified interface standards support access to third-party mounts such as loudspeaker.

Applications

Law Enforcement
Emergency Search & Rescue
Power Line Inspection
Firefighting & Rescue
